F15 涂鸦版执手式指纹锁（Tuya）

No. FD-006 Views 4

Grip-to-open handle · tempered glass panel · Tuya Smart ecosystem · 8 languages · smart-home linkage

Price TBA

Project-based pricing · Contact us for a quote

Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival

Tuya Version · Platform Ecosystem

The Tuya version is Powered by Tuya and joins the global Tuya Smart ecosystem: unlocking can trigger lights, curtains and cameras, and the lock works with mainstream voice assistants. With 8 switchable languages, it drops straight into homes, B&Bs and integration projects already delivered on Tuya — no new app or automation rework needed.

Version Comparison · One Hardware, Four Ecosystems

Version	Platform	Networking	Best For
TTLock Version	TTLock App (rental / hotel / housing ecosystem)	Bluetooth / WiFi / Gateway / NB-IoT	Hotels, apartments, rental projects	View →
Tuya VersionCurrent	Tuya Smart App (smart-home linkage)	Tuya Bluetooth / Tuya WiFi / Zigbee / Remote	Homes, B&Bs, smart-home scenes
BLUE LOCK Version	FANDAN BLUE LOCK platform (App + mini-program, private deployment)	Bluetooth / WiFi Gateway / 4G Gateway / Remote	Own-brand & private-deployment clients	View →
FANDAN Version	FANDAN full suite (FANDAN Smart App / Manager / PMS / Card Room, private deployment)	Bluetooth / WiFi Gateway / 4G Gateway / Remote	Projects needing the full FANDAN software suite	View →

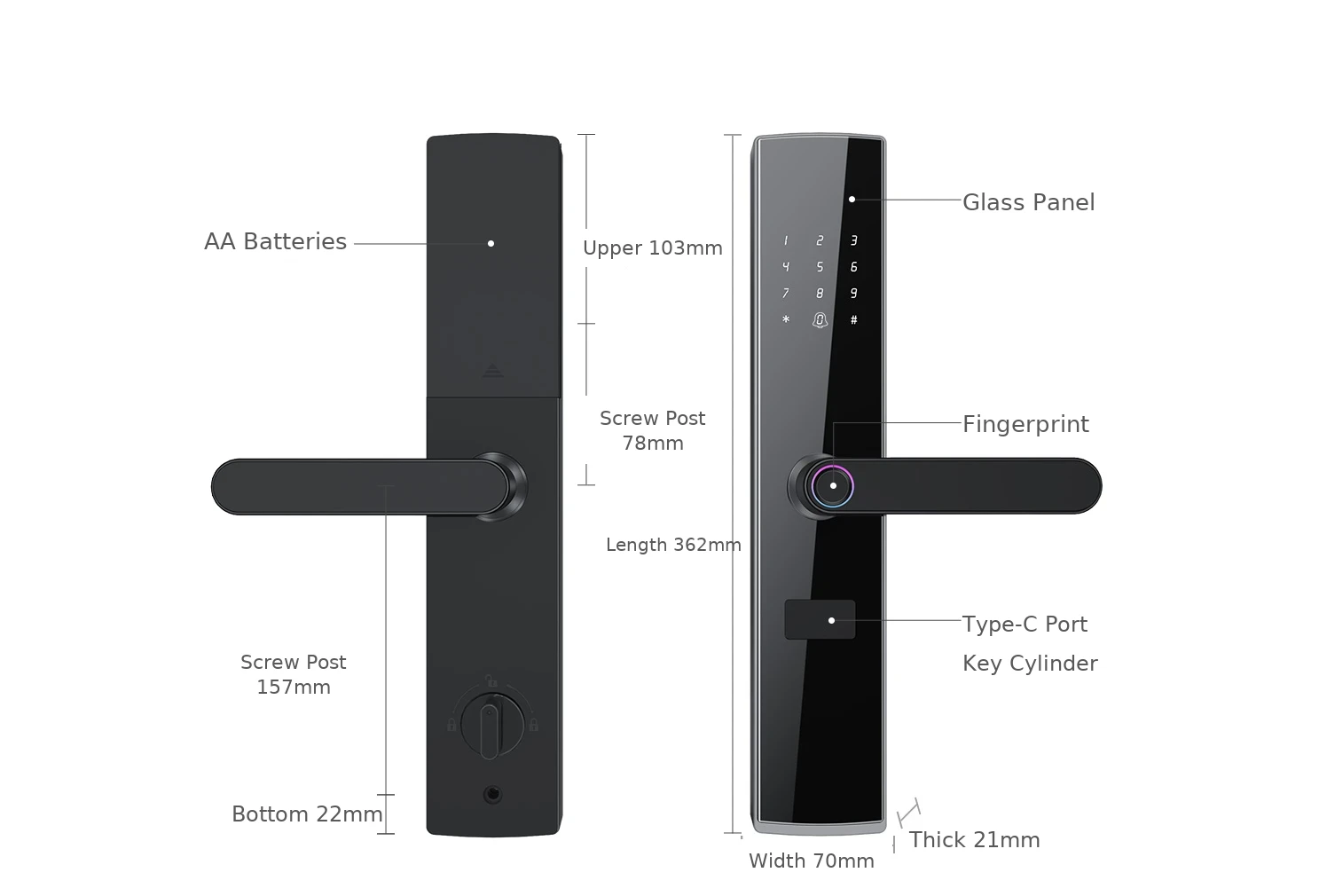

Product Size

Networking (Optional)

Tuya Bluetooth Tuya WiFi Zigbee Remote

Specifications

Platform

Tuya Smart App (Powered by Tuya, smart-home linkage)

Mainboard

Tuya solution

Panel

Tempered glass panel · grip-to-open handle

Unlock

Fingerprint · PIN · Card · Key · WeChat temp PIN · combo · passage mode

FP Capacity

Max 50 (shared)

PIN Codes

110 groups (shared) · ≤16-digit anti-peep PIN

Cards

110 cards (shared, MIFARE M1)

Users

10 admins · 100 users

Battery

4×AA alkaline (6V), ~12 months

Low Voltage Alarm

4.8V±0.2V (voice prompt)

Emergency Power

5VDC USB port

Static Current

≤80μA

Dynamic Current

>250mA

Temperature

-25℃ ~ 70℃

Humidity

20% ~ 90% RH

Networking

Tuya WiFi / Zigbee / Remote / CAT.1 (optional)

Standard Features

Low-battery alarm · anti-pry alarm · lockout after 5 wrong PINs · anti-peep PIN · unlock logs · CN/EN system

Extensions

Remote control · logs · anti-pry/anti-hijack alarms · battery reminder · remote time-limited PIN · remote · Tmall Genie

Languages

8 languages: EN/PT/ES/RU/ID/VI/ZH/TH

Quick Lock

Quick lock outside · "*" key quick sleep

Panel Size

362 × 70 × 21mm

Lock Body

6068 mortise (240mm)

Unit Weight

1.71Kg

Gift Box

411×187×85mm

Carton

450×390×425mm

Qty per Carton

10 pcs / 18.2kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
