F15 凡单版执手式指纹锁

F15 凡单版执手式指纹锁

No. FD-008 Views 8

Grip-to-open handle · tempered glass panel · full FANDAN suite (Smart / Manager / PMS / Card Room)

Price TBA

Project-based pricing · Contact us for a quote

WhatsApp Get a Quote
Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival
Share:

FANDAN Version · Platform Ecosystem

The FANDAN version plugs straight into the FANDAN software matrix: FANDAN Smart App for locks, FANDAN Manager for apartments, FANDAN PMS for rental room status and orders, and FANDAN Card Room for private-room booking. Access permissions stay in sync with room status, billing and reservations in real time — one deployment delivers both the hardware and the full management stack, with private deployment available.

Version Comparison · One Hardware, Four Ecosystems

VersionPlatformNetworkingBest For
TTLock VersionTTLock App (rental / hotel / housing ecosystem)Bluetooth / WiFi / Gateway / NB-IoTHotels, apartments, rental projectsView →
Tuya VersionTuya Smart App (smart-home linkage)Tuya Bluetooth / Tuya WiFi / Zigbee / RemoteHomes, B&Bs, smart-home scenesView →
BLUE LOCK VersionFANDAN BLUE LOCK platform (App + mini-program, private deployment)Bluetooth / WiFi Gateway / 4G Gateway / RemoteOwn-brand & private-deployment clientsView →
FANDAN VersionCurrentFANDAN full suite (FANDAN Smart App / Manager / PMS / Card Room, private deployment)Bluetooth / WiFi Gateway / 4G Gateway / RemoteProjects needing the full FANDAN software suite

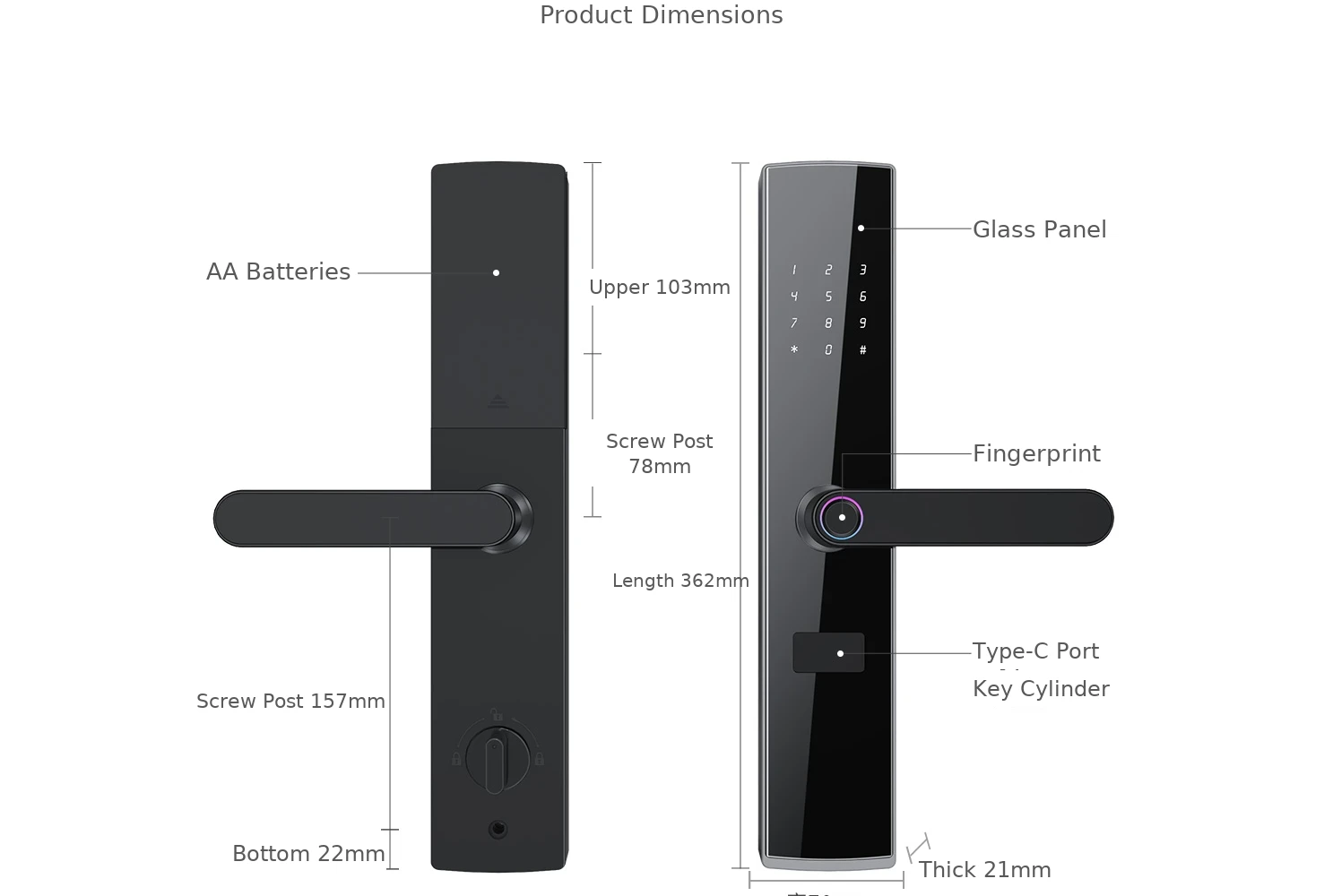

Product Size

F15 凡单版执手式指纹锁 size

Networking (Optional)

Bluetooth WiFi Gateway 4G Gateway Remote

Specifications

Platform
FANDAN suite: FANDAN Smart App / FANDAN Manager / FANDAN PMS / FANDAN Card Room (private deployment)
Panel
Tempered glass panel · grip-to-open handle
Unlock
Fingerprint · PIN · Card · App · Key
Fingerprint
Semiconductor live-fingerprint verification
FP Capacity
100 fingerprints
PIN Codes
Unlimited dynamic · 150 custom & permanent
Cards
200 cards (MIFARE M1)
Battery
4×AA alkaline, ~12 months
Emergency Power
Type-C USB
Power Consumption
≤50μA; standby 65μA
Working Current
250mA
Voltage
4.5~9V
Bluetooth
Bluetooth BLE
Networking
Bluetooth / WiFi GW / 4G GW / Remote / Door sensor
App Support
Android 4.3+ · iOS 7.0+
Unlock Speed
≈1.5s
Temperature
-20℃ ~ 70℃
Keypad
Touch keypad
Panel Size
362 × 70 × 21mm
Lock Body
6068 mortise (240mm)
Unit Weight
1.7Kg
Gift Box
185×83×412mm
Carton
450×390×425mm
Qty per Carton
10 pcs / 18.08kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing

Interested?

Contact us for datasheet & pricing
