P40 涂鸦版全自动可视对讲智能锁（Tuya）

No. FD-032 Views 3

3D face + palm vein · video intercom with indoor screen · fully automatic · Tuya Smart ecosystem

Price TBA

Project-based pricing · Contact us for a quote

Lithium battery included · Built-in lithium battery ships with the lock via battery-capable express line (MSDS / UN38.3 certified), ~7-12 days

Tuya Version · Platform Ecosystem

The Tuya version is Powered by Tuya and joins the global Tuya Smart ecosystem: unlocking can trigger lights, curtains and cameras, and the lock works with mainstream voice assistants. With 8 switchable languages, it drops straight into homes, B&Bs and integration projects already delivered on Tuya — no new app or automation rework needed.

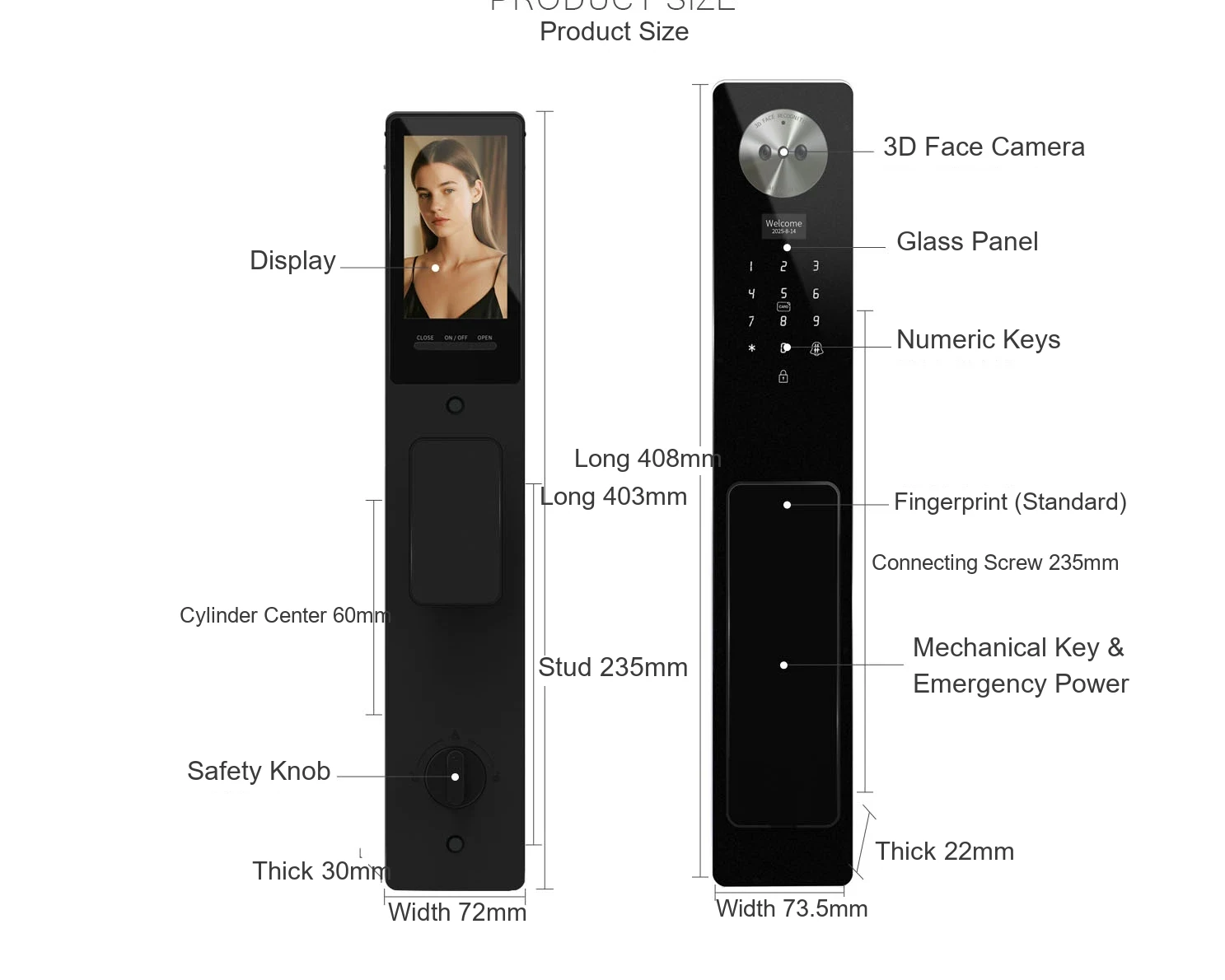

Product Size

Networking (Optional)

Tuya Bluetooth Tuya WiFi Zigbee Remote

Specifications

Platform

Tuya Smart / Smart Life App

Unlocking Method

3D face · palm vein · fingerprint · PIN · card · App · key (shared capacity)

User Capacity

10 admins + 501 users

PIN Length

6-12 digits

Virtual PIN

Up to 26 digits (anti-peep)

Lockout Protection

Locks 3 min after 5 failed attempts

Human Sensing

0.8-1.0m (adjustable)

FAR

≤0.00004%

FRR

≤0.015%

Camera

3D face recognition camera

Indoor Screen

HD indoor display with video intercom

Thumb Turn

Indoor privacy / deadbolt thumb turn

Standby Current

80-100μA

Operating Temp

-10°C to 60°C

Humidity

45%-90%RH

Power Supply

7.4V lithium battery

Emergency Power

5V USB emergency port

Lock Body

6068 mortise (fully automatic)

Panel Size

408 × 73.5 × 22mm (rear 403 × 72 × 30mm)

Single Weight

2.5kg

Color Box

488×188×110mm

Outer Box

570×507×450mm

Carton Qty/Weight

10 pcs / 26kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
