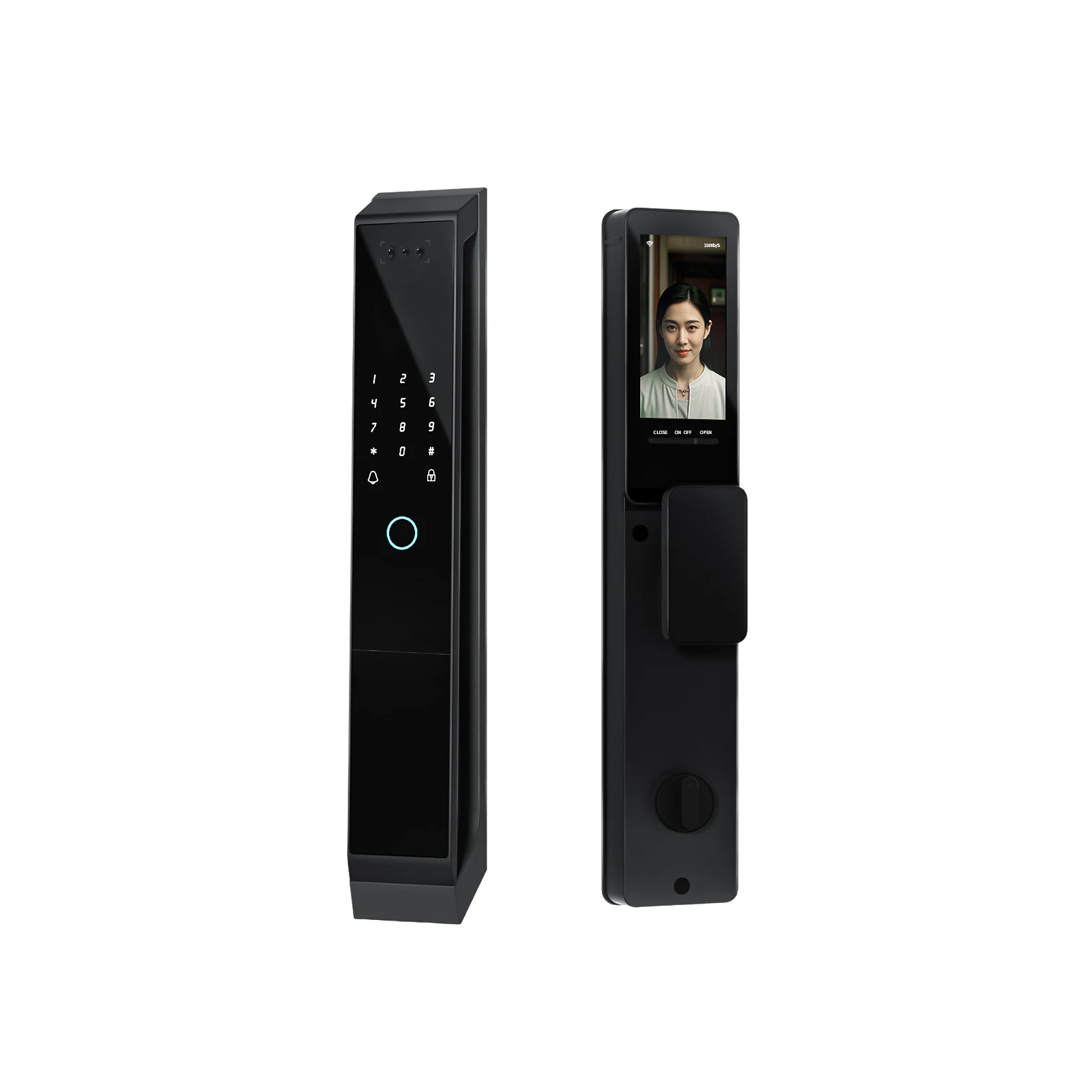

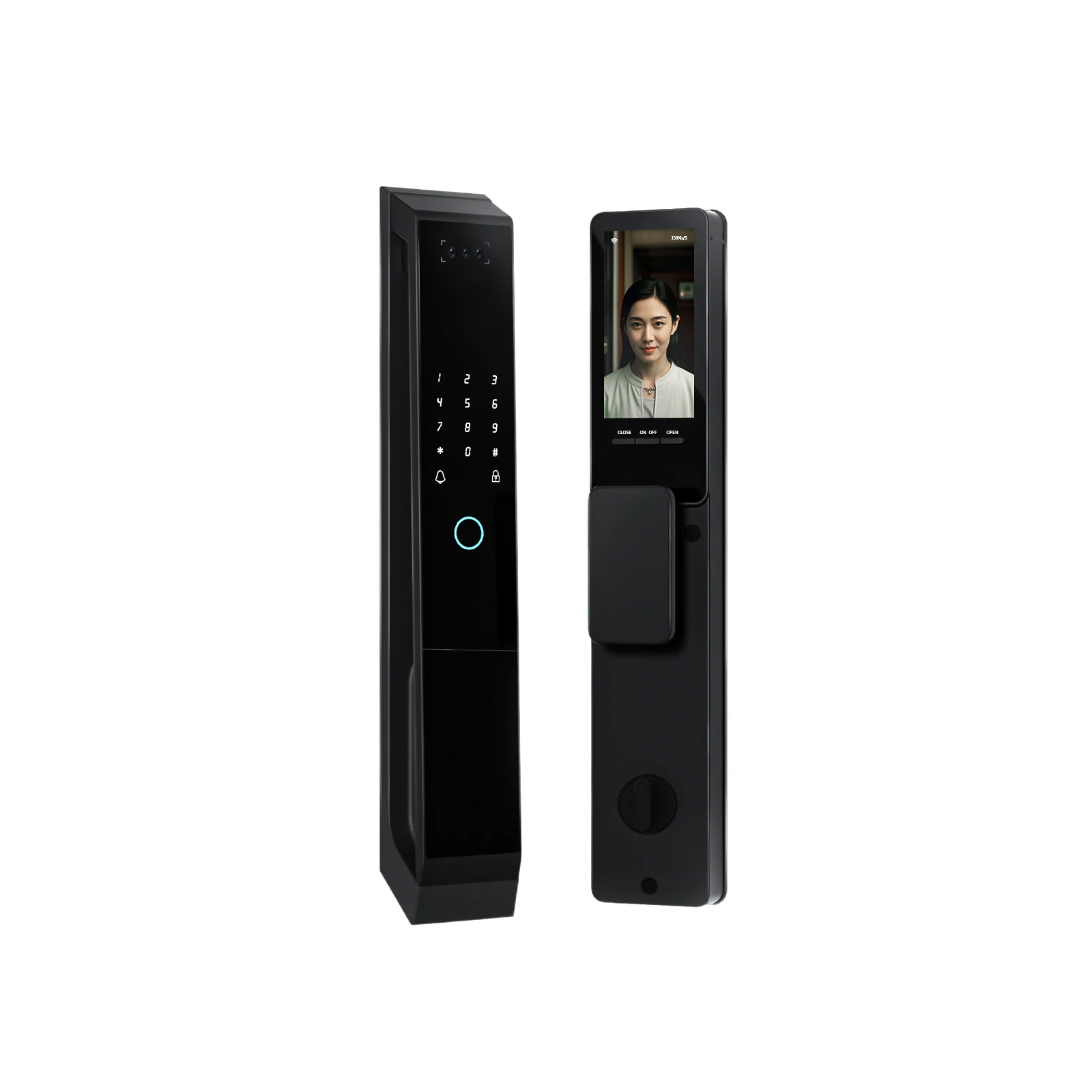

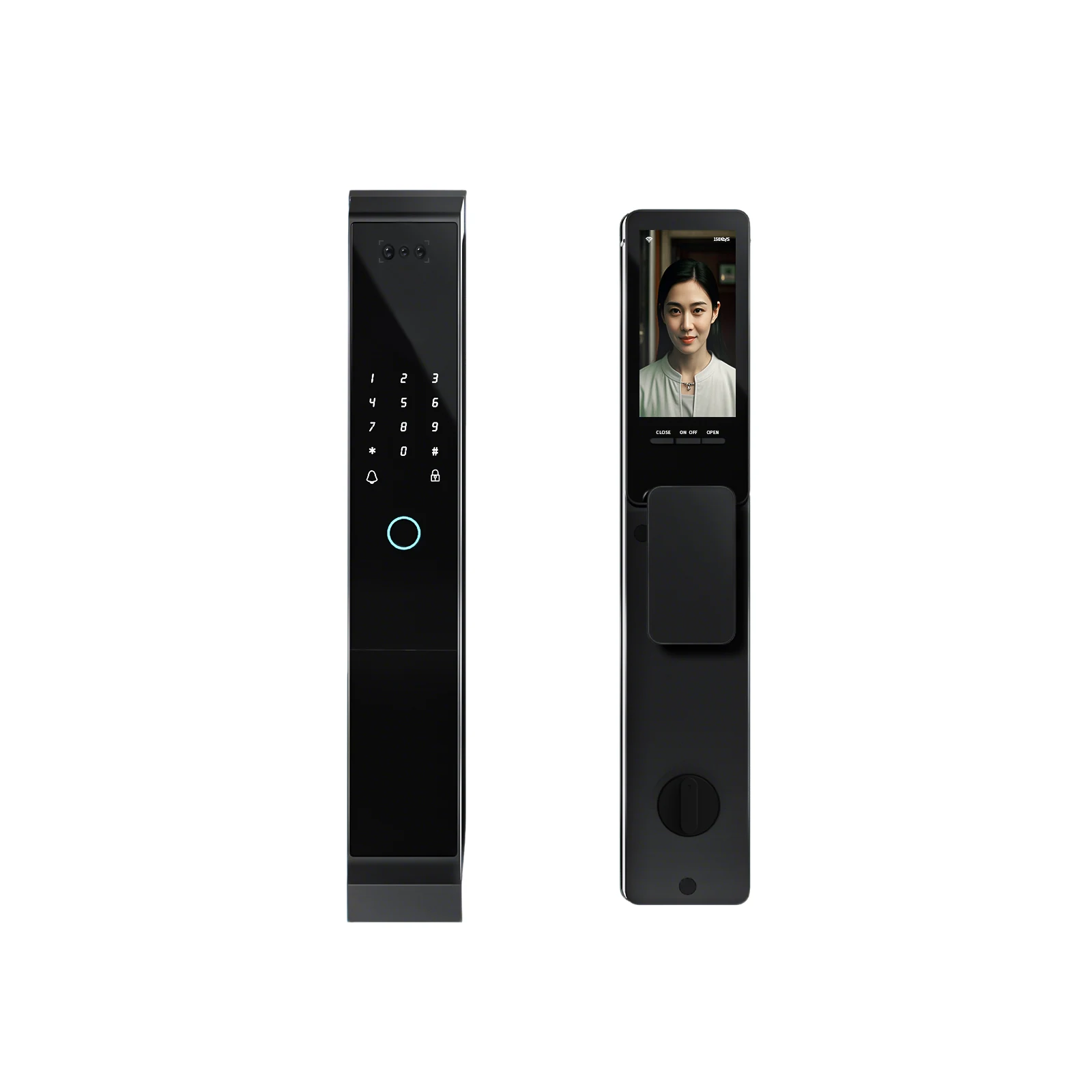

P20 通通版全自动可视对讲智能锁（TTLock）

No. FD-030 Views 9

3D face + palm vein · video intercom with indoor screen · fully automatic · TTLock ecosystem

Price TBA

Project-based pricing · Contact us for a quote

Lithium battery included · Built-in lithium battery ships with the lock via battery-capable express line (MSDS / UN38.3 certified), ~7-12 days

TTLock Version · Platform Ecosystem

The TTLock version runs on the global TTLock ecosystem, compatible with rental, hotel and public-housing management apps. Dynamic PINs, remote eKeys and cloud-synced access logs let operators issue and revoke access in bulk by lease term — ideal for hotels, serviced apartments and large rental projects, and instantly familiar to overseas teams already using TTLock.

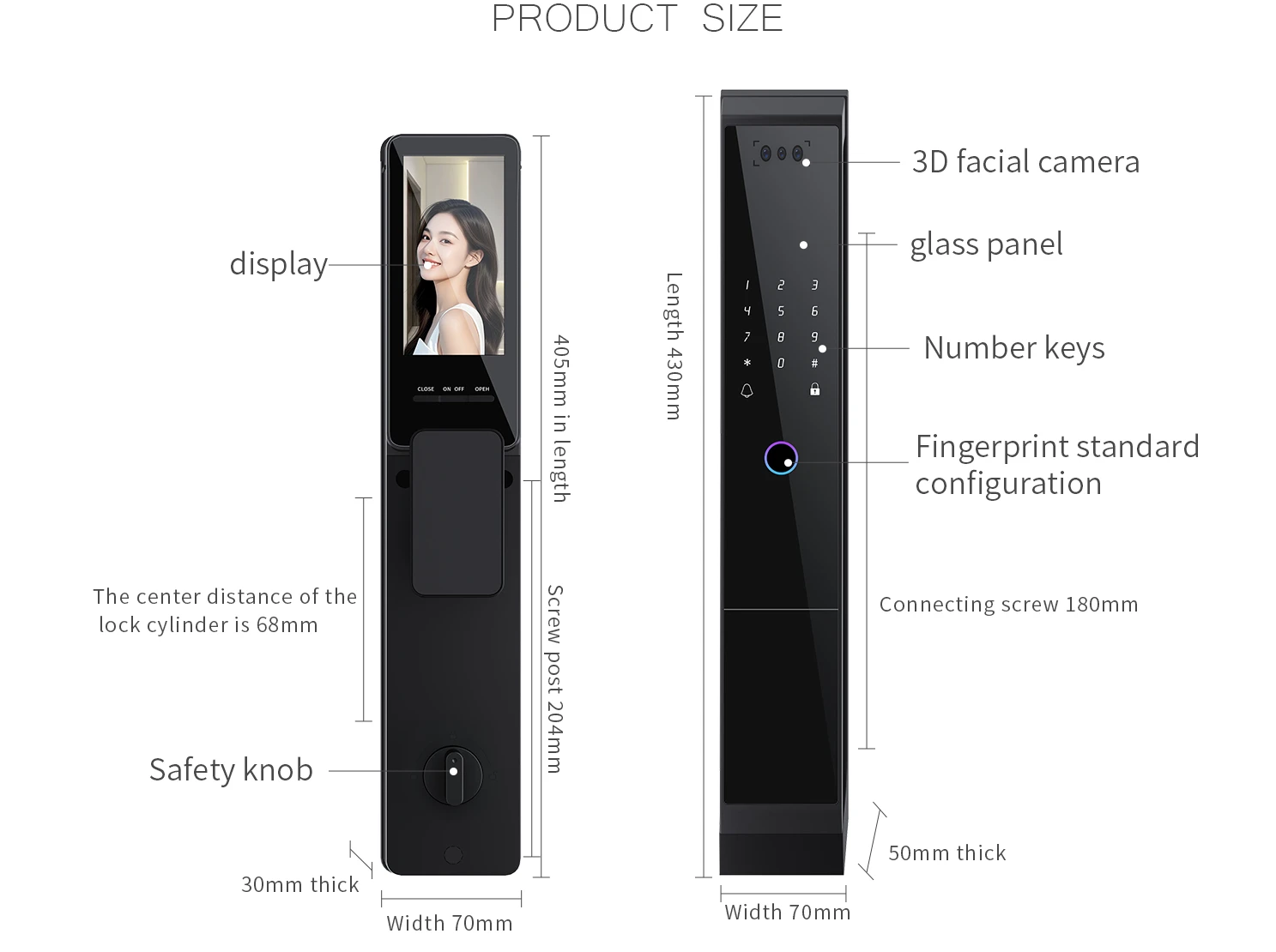

Product Size

Networking (Optional)

Bluetooth WiFi Gateway NB-IoT

Specifications

Platform

TTLock App (rental / hotel / public-housing ecosystem)

Unlocking Method

App · PIN · Fingerprint · IC card · Remote · 3D Face · Palm vein

Fingerprint Sensor

Semiconductor fingerprint sensor

Fingerprint Capacity

50 fingerprints

FAR

<0.001%

FRR

<1.0%

Face Capacity

100 faces (3D recognition)

Palm Vein Capacity

100 palms

Passwords

250 custom & permanent · unlimited dynamic

IC Cards

1,000 cards (MIFARE M1)

Camera

2MP · IR/color 1600×1200@30fps

FOV

IR H82°/V66°/D85° · Color H96°/V77°/D120°

Indoor Screen

HD display with video intercom

Power Supply

7.4V dual lithium batteries (8.4V full)

Low Battery Alert

7.1V

Voltage Range

5~9V

Standby Current

596μA (incl. peephole, radar, face)

Operating Current

<3A (average)

Bluetooth Standard

Bluetooth 5.0 BLE

Network

WiFi (802.11ac) 2.4G

Support System

Android 4.3+ / iOS 7.0+

Button Type

Capacitive touch buttons

Lock Body

6068 mortise (fully automatic)

Panel Size

430 × 70 × 50mm (rear panel 30mm)

Single Weight

2.5kg

Color Box

185×110×485mm

Outer Box

500×345×390mm

Carton Qty/Weight

6 pcs / 16kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
