G20PRO 通通版一握开智能锁(TTLock)

G20PRO 通通版一握开智能锁(TTLock)

No. FD-034 Views 4

Solid lever handle · semiconductor fingerprint · TTLock ecosystem

Price TBA

Project-based pricing · Contact us for a quote

WhatsApp Get a Quote
Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival
Share:

TTLock Version · Platform Ecosystem

The TTLock version runs on the global TTLock ecosystem, compatible with rental, hotel and public-housing management apps. Dynamic PINs, remote eKeys and cloud-synced access logs let operators issue and revoke access in bulk by lease term — ideal for hotels, serviced apartments and large rental projects, and instantly familiar to overseas teams already using TTLock.

Version Comparison · One Hardware, Four Ecosystems

VersionPlatformNetworkingBest For
TTLock VersionCurrentTTLock App (rental / hotel / housing ecosystem)Bluetooth / WiFi / Gateway / NB-IoTHotels, apartments, rental projects
Tuya VersionTuya Smart App (smart-home linkage)Tuya Bluetooth / Tuya WiFi / Zigbee / RemoteHomes, B&Bs, smart-home scenesView →
BLUE LOCK VersionFANDAN BLUE LOCK platform (App + mini-program, private deployment)Bluetooth / WiFi Gateway / 4G Gateway / RemoteOwn-brand & private-deployment clientsView →
FANDAN VersionFANDAN full suite (FANDAN Smart App / Manager / PMS / Card Room, private deployment)Bluetooth / WiFi Gateway / 4G Gateway / RemoteProjects needing the full FANDAN software suiteView →

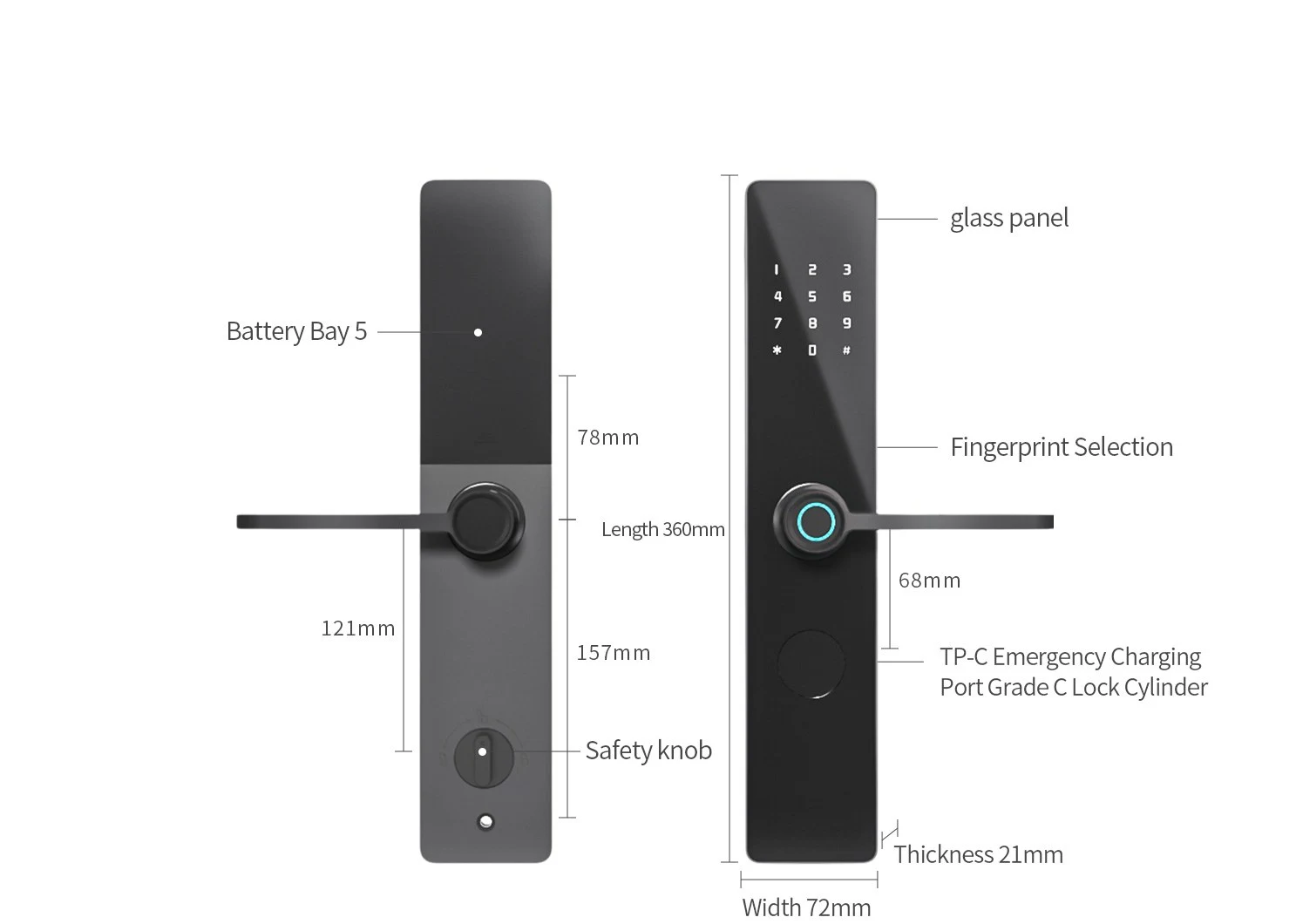

Product Size

G20PRO 通通版一握开智能锁(TTLock) size

Networking (Optional)

Bluetooth WiFi Gateway NB-IoT

Specifications

Platform
TTLock App (rental / hotel / public-housing ecosystem)
Unlock
Fingerprint · PIN · Card · App · Key
Fingerprint
Semiconductor live-fingerprint sensor
FP Capacity
50 fingerprints
PIN Codes
150 custom & permanent · unlimited dynamic
Cards
200 cards (MIFARE M1)
Unlock Speed
≈1.5s
Networking
Bluetooth / WiFi gateway (optional)
App Support
Android 4.3+ · iOS 7.0+
Battery
4×AA alkaline, ~12 months
Power Consumption
≤50μA; standby 65μA; working 250mA
Emergency Power
Type-C USB
Voltage
4.5~9V
Temperature
-20℃ ~ 70℃
Keypad
Capacitive touch keypad
Lock Body
6068 mortise
Panel Size
360 × 72 × 21mm
Unit Weight
2.06kg
Gift Box
185×83×412mm
Carton
450×390×425mm
Qty per Carton
10 pcs / 21.6kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
