FH01 通通版酒店智能锁（TTLock）

No. FD-038 Views 4

Hotel & apartment lock · card/PIN unlock · tempered glass touch panel · aluminum alloy · TTLock ecosystem

Price TBA

Project-based pricing · Contact us for a quote

Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival

TTLock Version · Platform Ecosystem

The TTLock version runs on the global TTLock ecosystem, compatible with rental, hotel and public-housing management apps. Dynamic PINs, remote eKeys and cloud-synced access logs let operators issue and revoke access in bulk by lease term — ideal for hotels, serviced apartments and large rental projects, and instantly familiar to overseas teams already using TTLock.

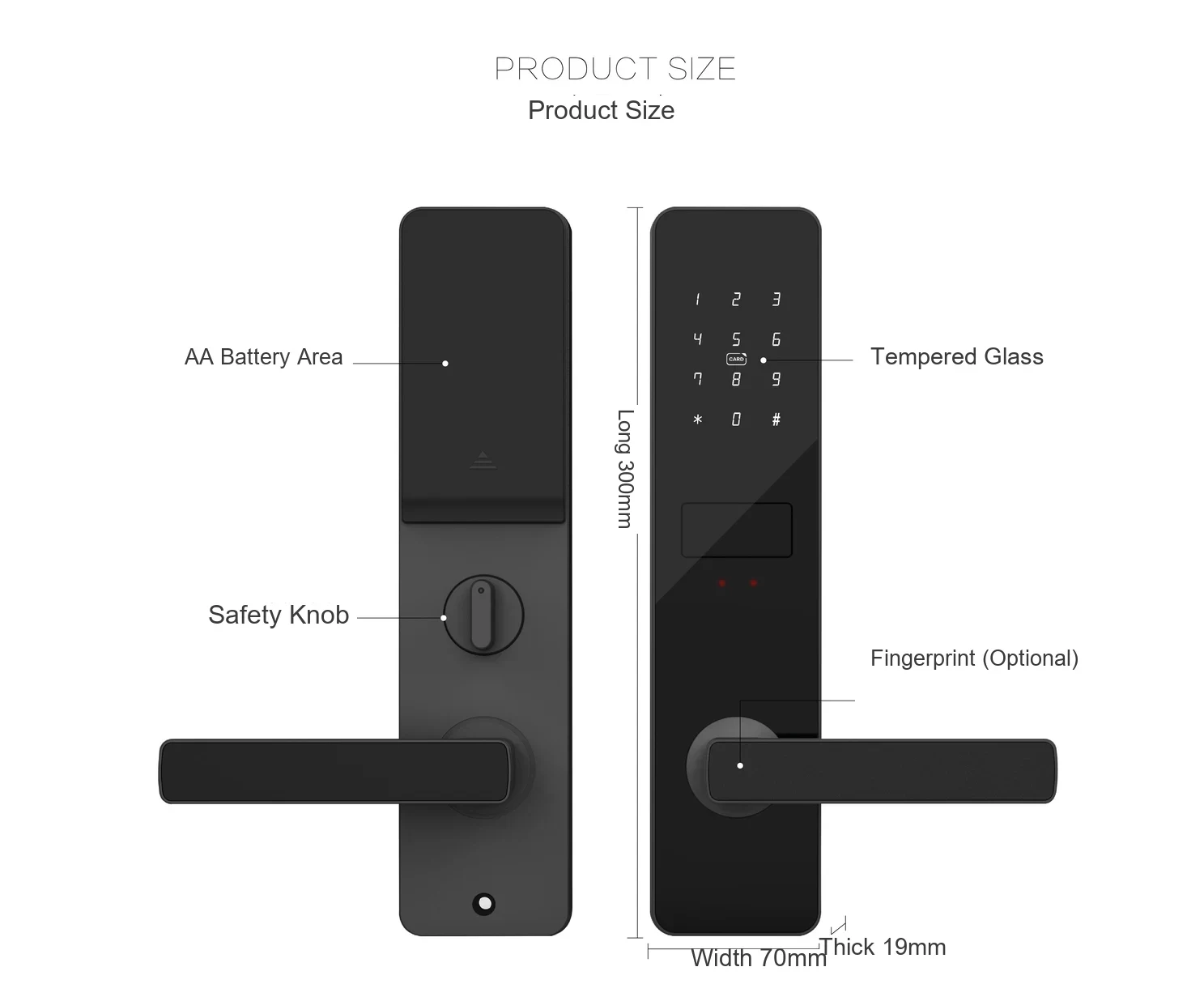

Product Size

Networking (Optional)

Bluetooth WiFi Gateway NB-IoT

Specifications

Platform

TTLock App (hotel / rental ecosystem)

Unlock

Card · PIN · App · Key (fingerprint / face optional)

Card Type

MIFARE M1

Card Capacity

200 cards

PIN Codes

Unlimited dynamic · 150 custom & permanent

Fingerprint

Semiconductor (optional), 100 capacity

Unlock Speed

≈1.5s

Bluetooth

Bluetooth BLE

Networking

Bluetooth / WiFi / Gateway / NB-IoT

App Support

Android 4.3+ · iOS 7.0+

Battery

4×AA alkaline, ~12 months

Power Consumption

≤50μA; standby 65μA; working 250mA

Emergency Power

Type-C USB

Voltage

4.5~9V

Temperature

-20℃ ~ 70℃

Keypad

Capacitive touch keypad

Material

Tempered glass touch panel + aviation aluminum alloy

Panel Size

300 × 70 × 19mm

Unit Weight

1.25kg

Gift Box

19.2×9.7×27.6cm

Carton

500×400×290mm

Qty per Carton

10 pcs

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
