F7PRO+ 通通版一握开木门锁(TTLock)

F7PRO+ 通通版一握开木门锁(TTLock)

No. FD-017 Views 2

Glass panel · grip-to-open · semiconductor fingerprint · TTLock ecosystem · CN/Intl versions

Price TBA

Project-based pricing · Contact us for a quote

WhatsApp Get a Quote
Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival
Share:

TTLock Version · Platform Ecosystem

The TTLock version runs on the global TTLock ecosystem, compatible with rental, hotel and public-housing management apps. Dynamic PINs, remote eKeys and cloud-synced access logs let operators issue and revoke access in bulk by lease term — ideal for hotels, serviced apartments and large rental projects, and instantly familiar to overseas teams already using TTLock.

Version Comparison · One Hardware, Four Ecosystems

VersionPlatformNetworkingBest For
TTLock VersionCurrentTTLock App (rental / hotel / housing ecosystem)Bluetooth / WiFi / Gateway / NB-IoTHotels, apartments, rental projects
Tuya VersionTuya Smart App (smart-home linkage)Tuya Bluetooth / Tuya WiFi / Zigbee / RemoteHomes, B&Bs, smart-home scenesView →
BLUE LOCK VersionFANDAN BLUE LOCK platform (App + mini-program, private deployment)Bluetooth / WiFi Gateway / 4G Gateway / RemoteOwn-brand & private-deployment clientsView →
FANDAN VersionFANDAN full suite (FANDAN Smart App / Manager / PMS / Card Room, private deployment)Bluetooth / WiFi Gateway / 4G Gateway / RemoteProjects needing the full FANDAN software suiteView →

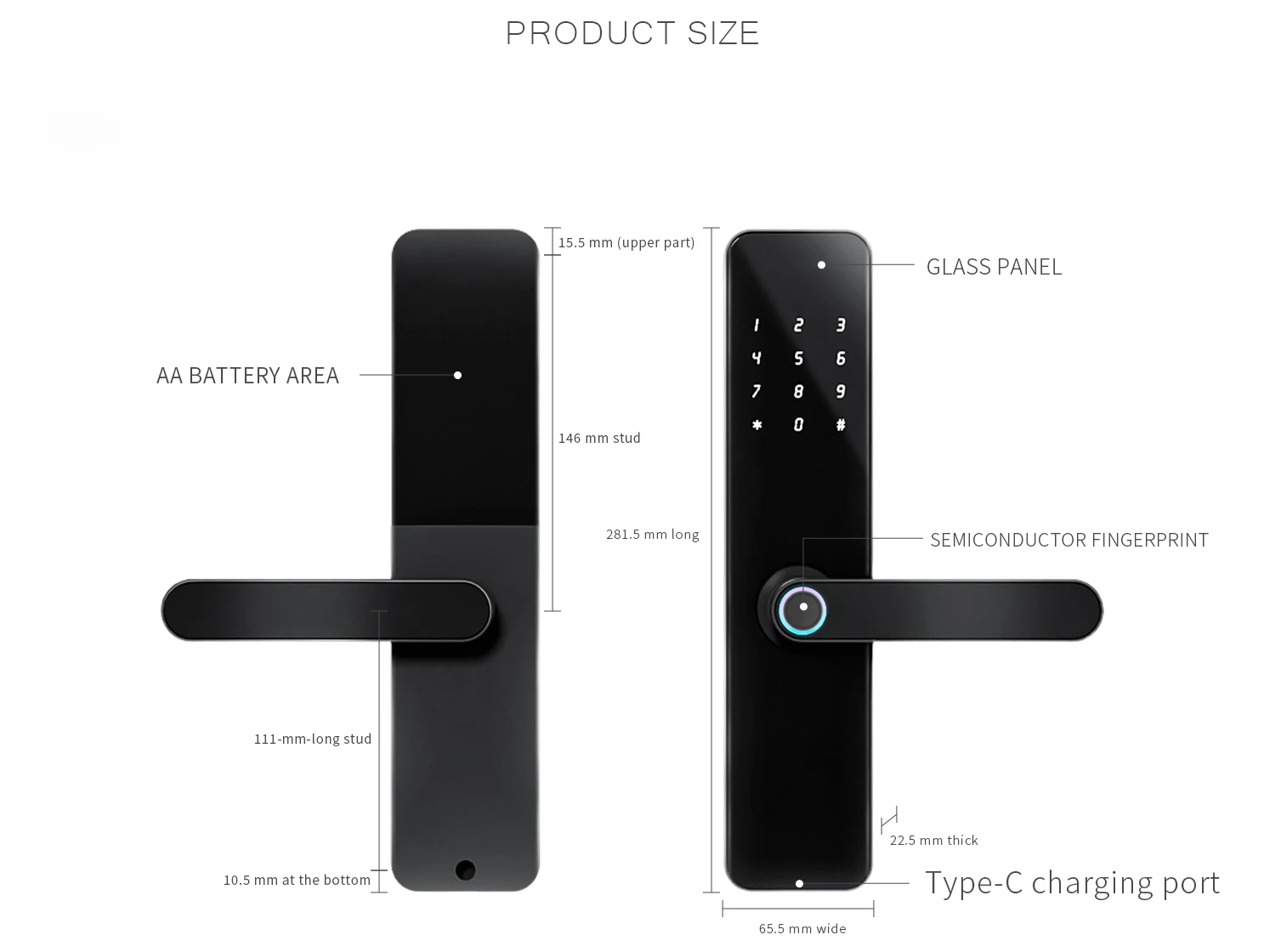

Product Size

F7PRO+ 通通版一握开木门锁(TTLock) size

Networking (Optional)

Bluetooth WiFi Gateway NB-IoT

Specifications

Platform
TTLock App (rental / hotel / public-housing ecosystem)
Unlocking Method
Fingerprint · PIN · Card · App · Key
Fingerprint Authentication
Semiconductor live fingerprint verification
Fingerprint Capacity
50 fingerprints
Passwords
Unlimited dynamic · 150 custom & permanent
IC Cards
1,000 cards (MIFARE M1)
Battery
4× 1.5V AA alkaline batteries, ~12 months
Emergency Power Supply
Type-C USB
Power Consumption
≤50μA; standby 65μA
Operating Current
200mA
Voltage Range
4.5~9V
Bluetooth Standard
Bluetooth BLE
Networking
Bluetooth / WiFi / Gateway / NB-IoT
Supported Systems
Android 4.3 / iOS 7.0+
Unlocking Time
≈1.5 seconds
Operating Temperature
-20°C ~ 70°C
Button Type
Capacitive touch buttons
Material
Glass panel
Panel Size
281.5 × 65.5 × 22.5mm
Single Weight
1.4kg
Color Box Dimensions
192×97×276mm
Outer Carton Dimensions
500×365×310mm
Carton Qty/Weight
10 pcs / 14.69kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
