F18 涂鸦版智能联动指纹锁（Tuya）

No. FD-010 Views 4

Grip-to-open · tempered glass · aviation aluminum · Tuya smart-home fingerprint lock · 8-language customization

Price TBA

Project-based pricing · Contact us for a quote

Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival

Tuya Version · Platform Ecosystem

The Tuya version is Powered by Tuya and joins the global Tuya Smart ecosystem: unlocking can trigger lights, curtains and cameras, and the lock works with mainstream voice assistants. With 8 switchable languages, it drops straight into homes, B&Bs and integration projects already delivered on Tuya — no new app or automation rework needed.

Version Comparison · One Hardware, Four Ecosystems

Version	Platform	Networking	Best For
TTLock Version	TTLock App (rental / hotel / housing ecosystem)	Bluetooth / WiFi / Gateway / NB-IoT	Hotels, apartments, rental projects	View →
Tuya VersionCurrent	Tuya Smart App (smart-home linkage)	Tuya Bluetooth / Tuya WiFi / Zigbee / Remote	Homes, B&Bs, smart-home scenes
BLUE LOCK Version	FANDAN BLUE LOCK platform (App + mini-program, private deployment)	Bluetooth / WiFi Gateway / 4G Gateway / Remote	Own-brand & private-deployment clients	View →
FANDAN Version	FANDAN full suite (FANDAN Smart App / Manager / PMS / Card Room, private deployment)	Bluetooth / WiFi Gateway / 4G Gateway / Remote	Projects needing the full FANDAN software suite	View →

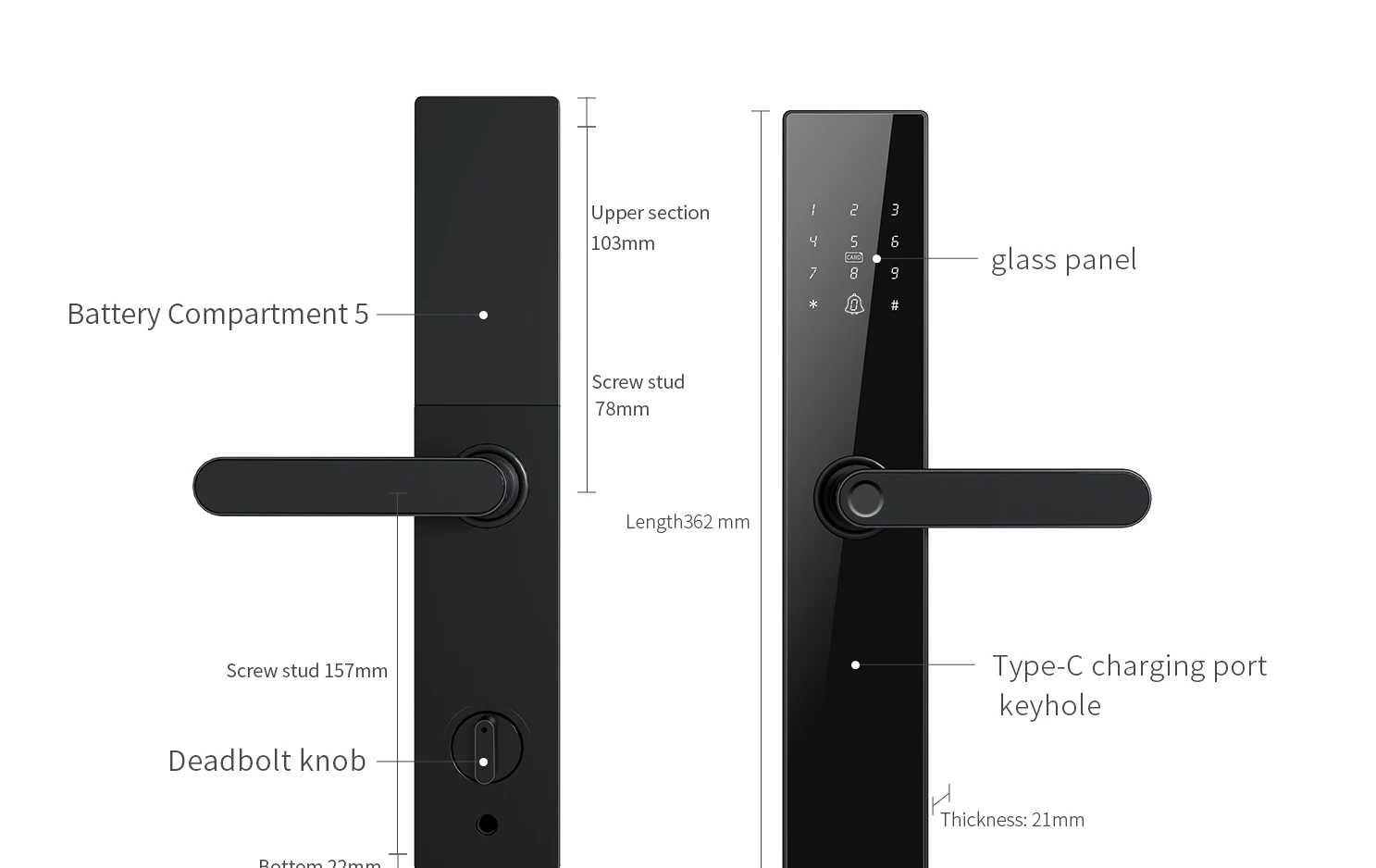

Product Size

Networking (Optional)

Tuya Bluetooth Tuya WiFi Zigbee Remote

Specifications

Platform

Tuya Smart App (Powered by Tuya, smart-home linkage)

Mainboard

Tuya solution

Unlocking Method

Fingerprint (optional) · password · card · key · WeChat temp PIN · combo · passage mode

Fingerprint Authentication

Semiconductor live fingerprint verification

Fingerprint Capacity

Maximum 50 (shared)

Passwords

Unlimited dynamic passwords

IC Cards

110 sheets (shared, MIFARE M1)

Battery

1.5V AA alkaline ×4 (6V), ~12 months

Low Voltage Alarm

4.8V±0.2V (voice prompt)

Emergency Power Supply

USB Type-C

Static Current

≤80μA

Dynamic Current

>250mA

Operating Temperature

-25°C ~ 70°C

Operating Humidity

20% ~ 90% RH

Button Type

Capacitive touch buttons

Networking

Tuya WiFi / remote control (optional)

Standard Features

Low-battery alarm · anti-pry · lockout after 5 wrong PINs · anti-peep PIN · logs · CN/EN system

Extensions

Tuya WiFi link · remote control · logs · anti-pry/anti-hijack alarms · battery reminder · remote time-limited PIN · remote

Languages

8 languages: EN/PT/ES/RU/ID/VI/ZH/TH

Quick Lock

Quick lock outside · "*" quick sleep

Material

Tempered-glass touch panel · aviation aluminum alloy

Panel Size

362 × 70 × 21mm

Lock Body

6068 mortise (240mm)

Single Weight

1.84kg

Color Box

411×187×85mm

Outer Box

450×390×425mm

Carton Qty/Weight

10 pcs / 19.4kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
