F17 俄罗斯专用通通版门锁（TTLock）

No. FD-021 Views 4

Built for Russia · -25°C cold-resistant · glass panel · optional fingerprint · TTLock ecosystem

Price TBA

Project-based pricing · Contact us for a quote

Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival

TTLock Version · Platform Ecosystem

The TTLock version runs on the global TTLock ecosystem, compatible with rental, hotel and public-housing management apps. Dynamic PINs, remote eKeys and cloud-synced access logs let operators issue and revoke access in bulk by lease term — ideal for hotels, serviced apartments and large rental projects, and instantly familiar to overseas teams already using TTLock.

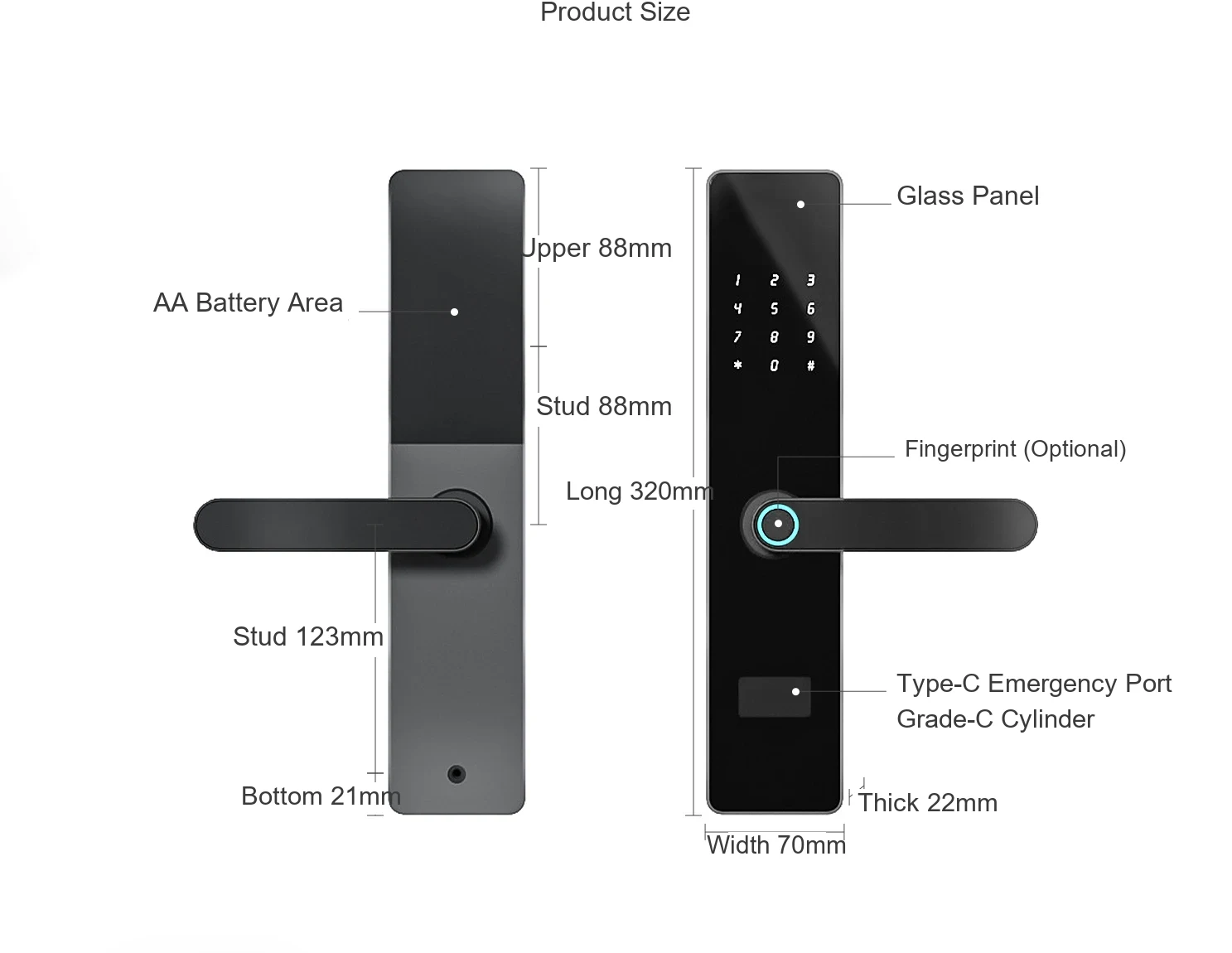

Product Size

Networking (Optional)

Bluetooth WiFi Gateway NB-IoT

Specifications

Platform

TTLock App (rental / hotel / public-housing ecosystem)

Unlocking Method

Fingerprint (optional) · PIN · IC card · key · app remote

Admins

10 (by permission)

Users

100

Fingerprint

Up to 50 (shared), 5-angle enrollment

110 groups (shared), 6-10 digits

Cards

110 cards (shared)

Anti-peep PIN

≤16 digits with random padding

Low Battery Alert

Alert at 4.8V±0.2V; lockout below 4.5V

Static Current

≤80μA

Dynamic Current

>250mA

Power

6V, 4×AA batteries

Emergency Power

5V DC USB

Networking

Bluetooth / WiFi / Gateway / NB-IoT

Operating Temperature

-25°C ~ 70°C (cold-resistant for Russian winters)

Operating Humidity

20% ~ 90% RH

Quick Lock

Quick lock outside

Quick Sleep

"*" key quick sleep

Material

Glass panel · Grade-C cylinder

Panel Size

320 × 70 × 22mm

Single Weight

1.95kg

Color Box

185×83×412mm

Outer Box

450×390×425mm

Carton Qty/Weight

10 pcs / 18.86kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
